Alloy Steel

Bearing Steel
SAE 52100, SKF Gr3, 100Cr6, 100CrMnSi64, 100CrMn6, 100CrMo7, Gr 24, Gr 24K,Gr17OK, SAE 33I0

Chrome - Moly Steel
SAE 4130/4135/4140/4145
42CrMo4, En19

Case Carburizing Steel
16MnCr5/20MnCr5
SAE 8620/8619/8622/8625/8627/8822

High Nickel Steel
En36C/19NiCrMo4,18X2H4BA, 20X2H4A, 5HS64, SAE9310

Micro Alloyed Steel
38MnSiVS6, C70S6 etc

Creep Resistant Steel
F11, F22, F12, F5, F9, F91, FI, H, F92, 9Cr1Mo

Boron Steel
15B22, 15B41 , 43B17, 94B17H, 20MnCr5(B)

Tool& Die Steel
H11,H13, DIN 1.2714, AISI 01, S7

Stainless & Ni-Alloy Steel

Ferritic Stainless Steel
409, 430,430F, 430Ti, 13Cr

Martensitic Stainless Steel
403, 410, 414, 416, 420, 431

Nickel Alloy/ Super Alloy
INCONEL 600, 617, 625
INCOLOY 800, 825, 903

Austenitic Stainless Steel
303, 304, 304H, 304L, 321, 321H, 316,316H, 316L, 316Ti, 317, 317L, 347, 347H, 309, 309S, 310, 310S

PrecipitationHardening, Duplex & Super Duplex Stainless Steel
17-4PH, 15-5PH, F6NM, 1.4418,
F-51, F-53, F-55, F-60

Cast Products

Cast Bloom
Square – 150 x 150 mm
Rectangle – 280 x 350 mm
Octagon – 198, 232, 262, 308 mm (Crest to Crest)

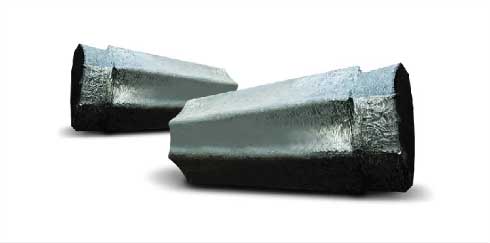

Cast Ingot
Square – 2 Mt, 3 Mt
Polygonal – 6 Mt, 9 Mt, 14 Mt, 17 Mt, 30 Mt
Round – 600 mm, 700 mm

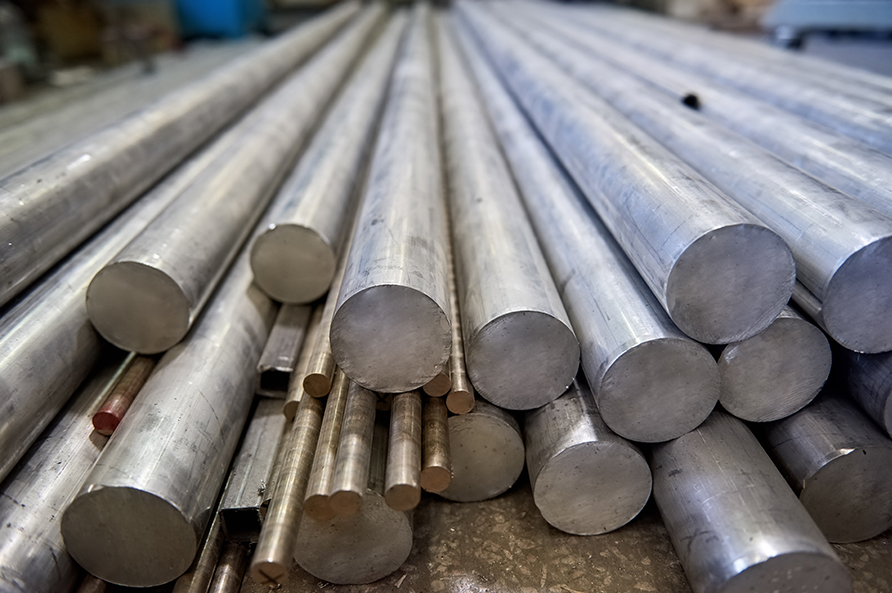

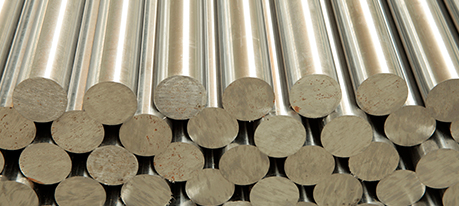

Rolled Products

Round Bars (mm Dia)
45~235

Round Corner Squares (mm Side)
55 ~ 340

Dimensional Tolerances are as per:
IS 3739 - 1987

Heat Treated Product

Annealed
Hardened (Quenched) & Tempered

Spheroidised Annealed
Solution Annealed

Normalized
Normalized & Tempered

Soft Annealed (Stress Relieved)

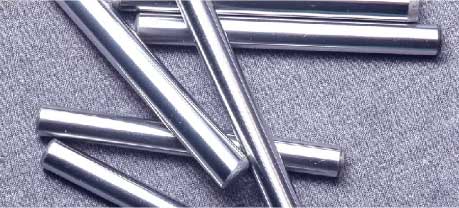

Bright Bars

Peeled & Polished Bars
40 mm - 230 mm Dia

Dimensional Tolerances as Per:
H9, H10, H11, K11, K12, K13 & EN 10060

HEAT TREATED PRODUCT

Annealed
Hardened (Quenched) & Tempered

Spheroidised Annealed
Solution Annealed

Normalized
Normalized & Tempered

Soft Annealed (Stress Relieved)

BRIGHT BARS

Peeled & Polished Bars
40 mm - 260 mm Dia

Dimensional Tolerances as Per:
H9, H10, H11, K11, K12, K13 & EN 10060

Value Added Products

Drilled Bars ID
15 – 65 mm and OD up to 160mm; length up to 700 mm max

Extra Long Bars
Length up 10 – 17 mtr in annealed and quench & tempered condition

Precision Rolled Black Bars (PRBB)
30 – 65 dia Bar with tolerance upto 100 microns Thickness : 5 - 34 mm

Precision Seamless Tubes/ Pipes : OD:
25 – 168 mm Cold Drawn, Shaped Tubes, Pilgered Tubes Thickness : 5 - 34 mm

PREFERRED BY KEY INDUSTRIES SUCH AS AUTOMOTIVE, ENERGY,
DEFENCE, NUCLEAR POWER AND AEROSPACE.

Download Brochure
